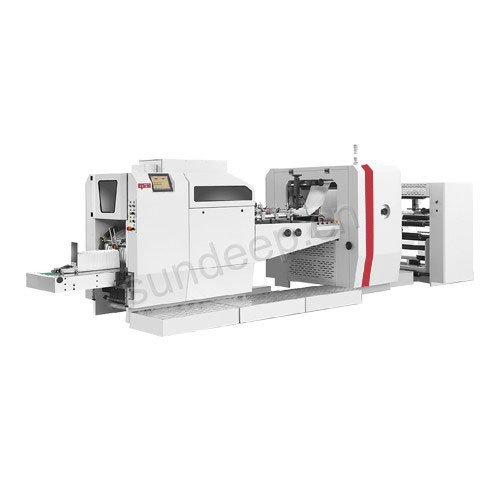

SUND series Sharp Bottom Paper Bag Machine

SUND series Sharp Bottom Paper Bag Machine

This machine applies varied primary and printed rolling paper, such as Kraft paper, ribbed kraft paper, grease-proof paper, coated paper,medico paper and so on to make sharp bottom paper bag (also called V shape paper bag).

Description:

The machine consist of below parts: perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, and collect final product quantitatively.

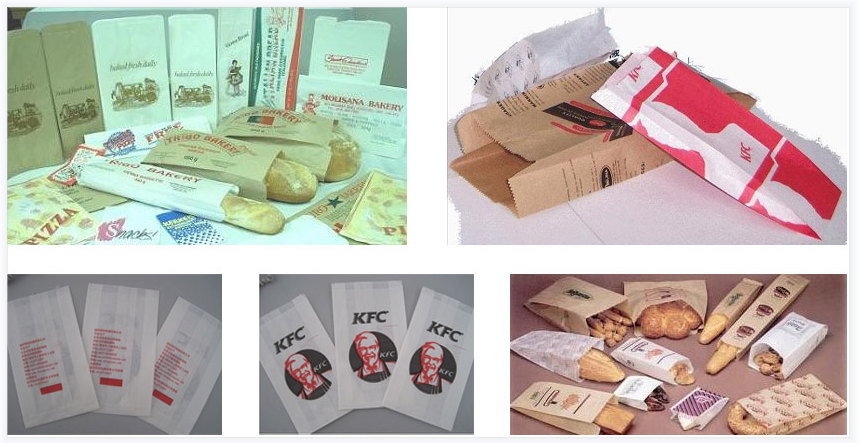

This machine operate easier, working more efficient, and performance more steadily. It is a fantastic machine for paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag, eco-bag and so on.

Highlight:

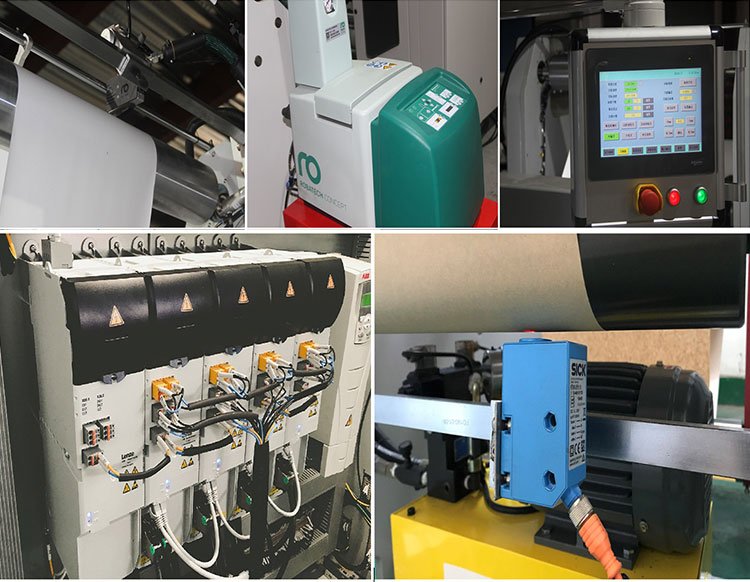

√ Available Germany LENZE human-computer touch screen,it is easy to operate and control.

√Available Germany LENZE motion controller(PC), integrated with optical fiber,ensure the machine with high speed steadily.

√ Available Germany LENZE servo motor integrated with Germany original SICK rectifying photo sensor, ensure the printed paper length under tracking precisely.

√ The loading and unloading of the raw materials adopts the hydraulic automatic lifting structure, and the full automatic tension control is adopted for the reel.

√ Available Italy SELECTRA material edge rectify system, substantially cut off the edge alignment time

Specification:

Machine model	SUJD-G350
Length of cutting bag	165-715mm
Bag length	160-715mm
Bag width	70-350mm
Paper width	200-920mm
Paper roll diameter	Φ1000mm
Paper core diameter	Φ76mm
Paper thickness	35-80g/m2
Insert size	20-120mm
Bag mouth height	15/20mm
Production speed	50-650pcs/min
Machine power	380v 3phase5wire，27.1kw
Machine weight	6500kg
Machine size	7300x3000x2200mm
Power supply	380v 3phase 50hz; 27.1kw

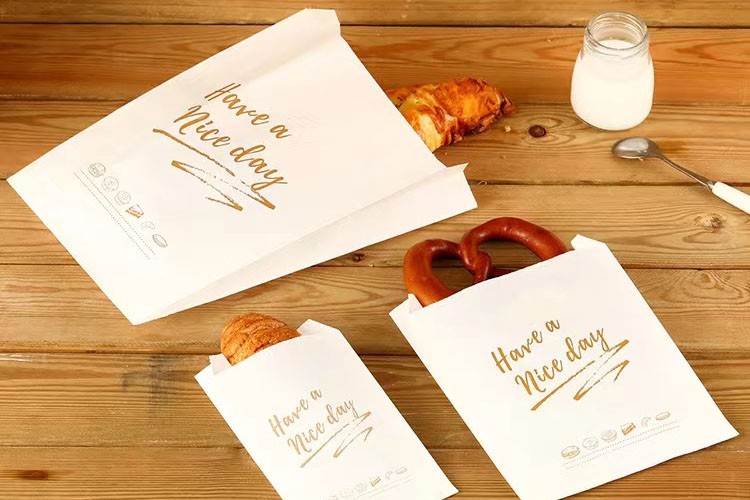

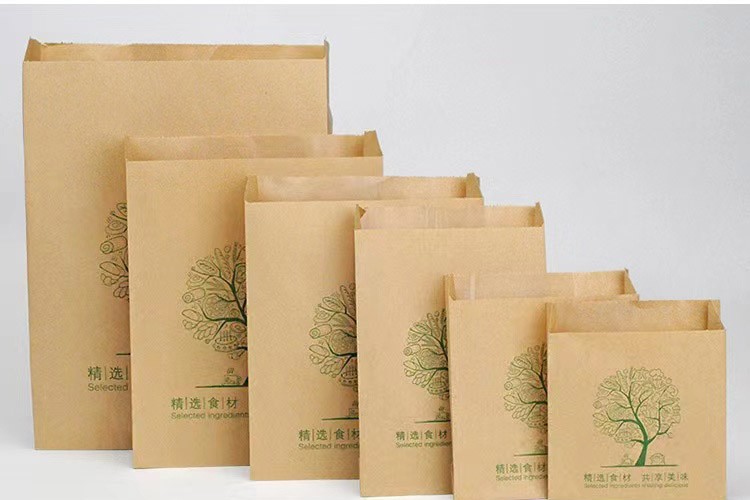

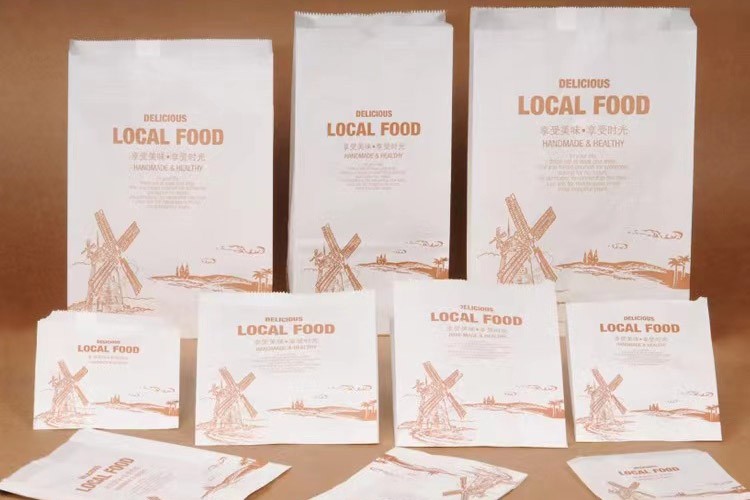

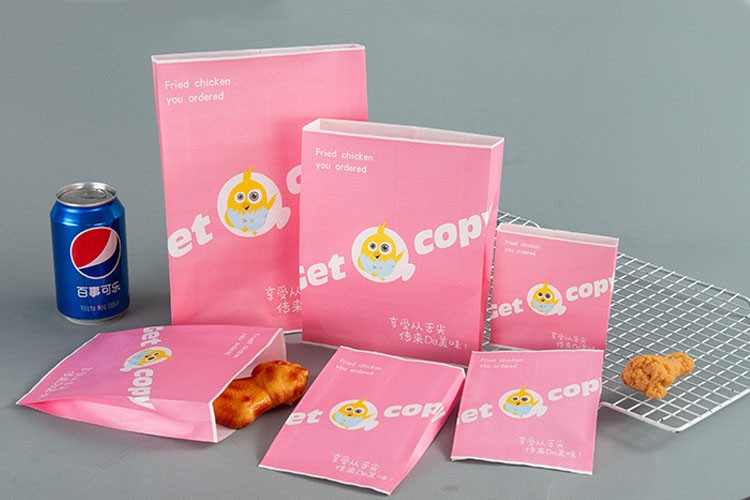

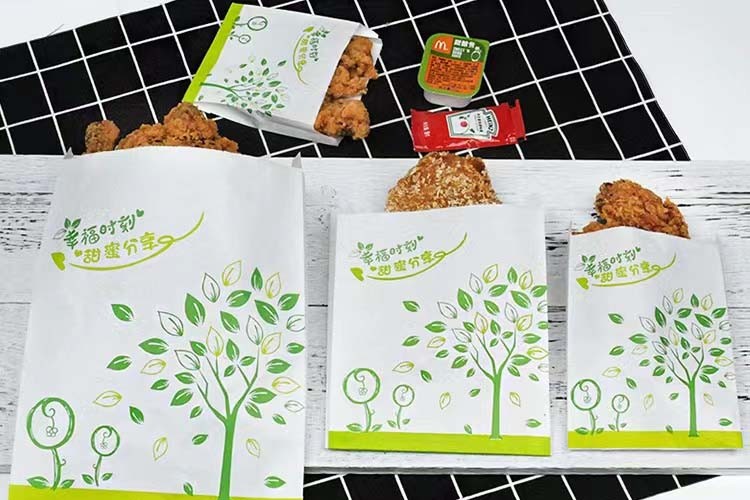

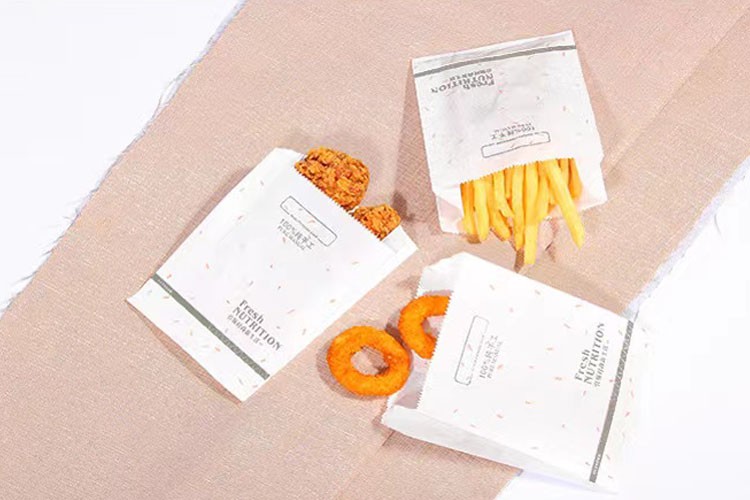

Sharp bag drawing
