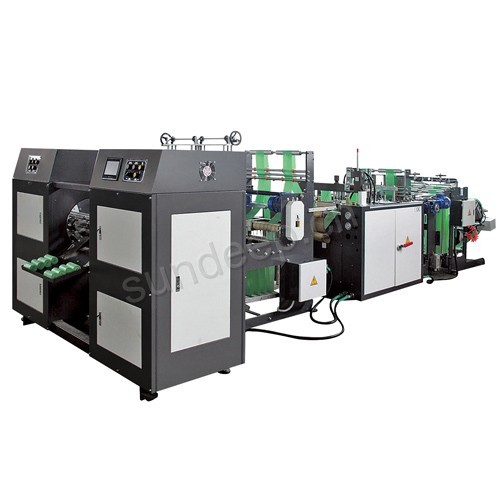

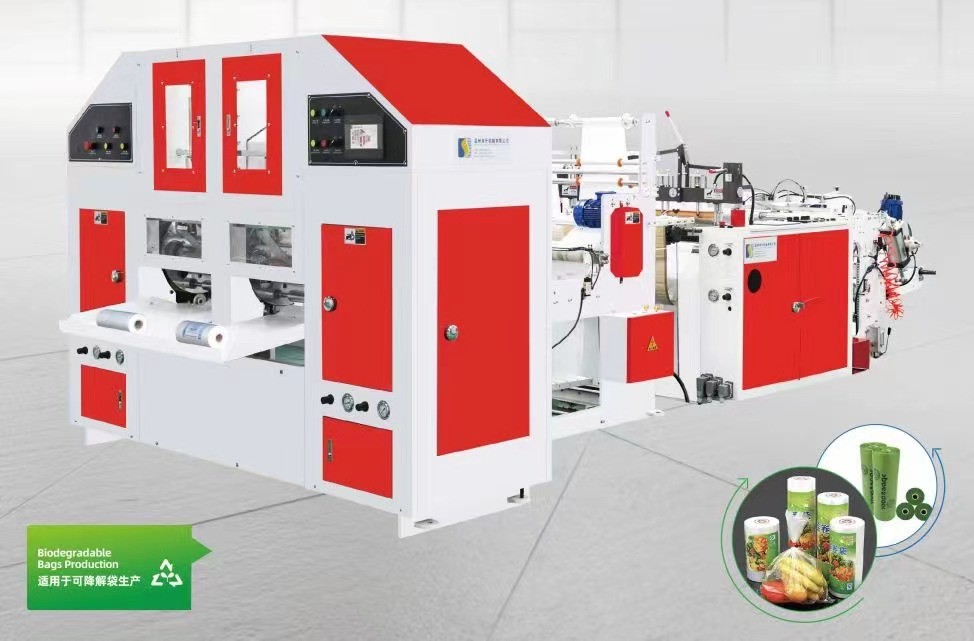

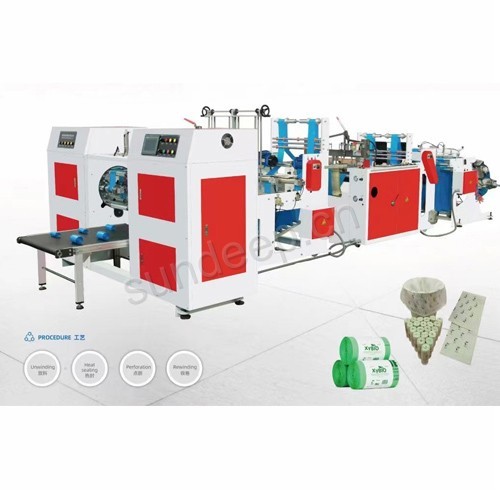

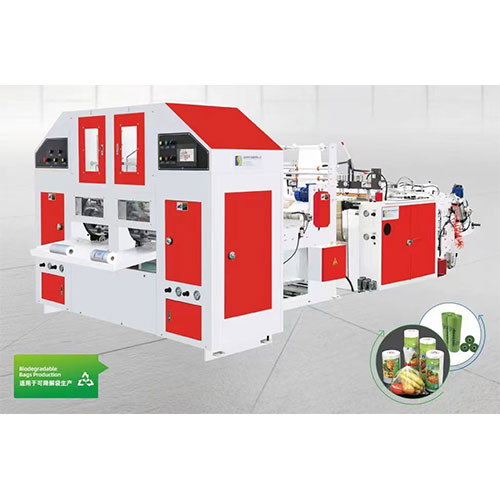

SUND series Fully automatic bag-on-roll making machine

SUND series Fully automatic bag-on-roll making machine

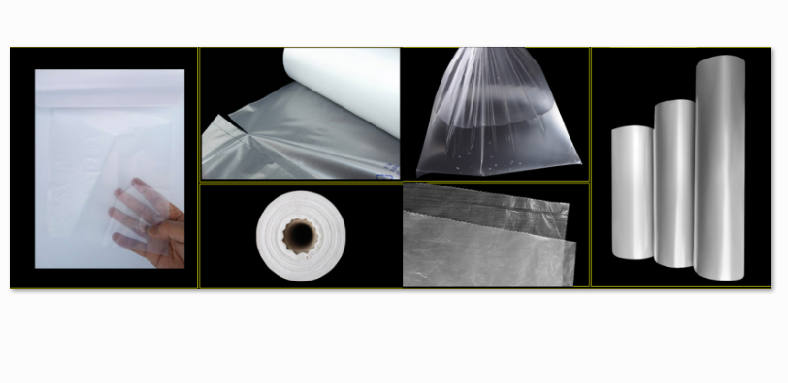

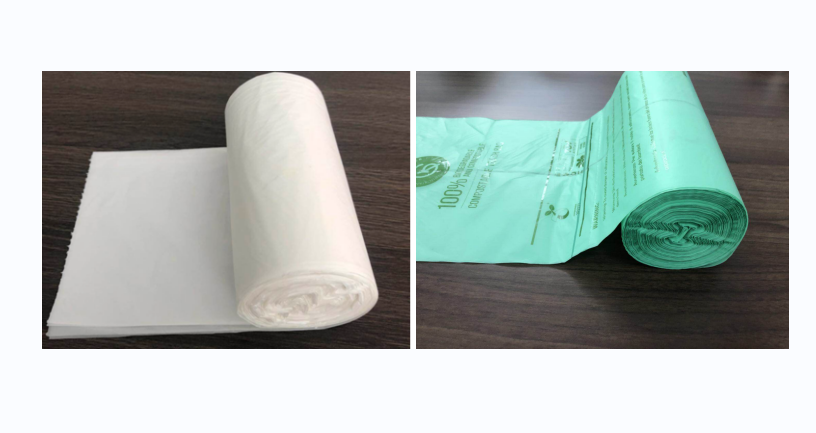

The machine applies granule raw materials as LDPE, HDPE and LLDPE to make blown film, the finished film is widely used for making food, fruit, clothing, textile, vest type bag and etc, which is the most common packing film in daily life consumption.

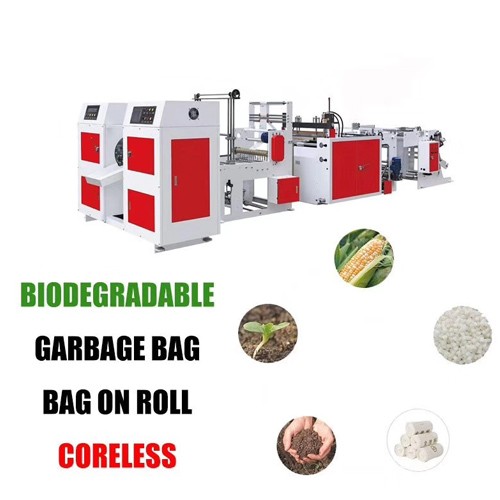

SUWX-300 X 2 TWO LINES CORLESS MODEL:

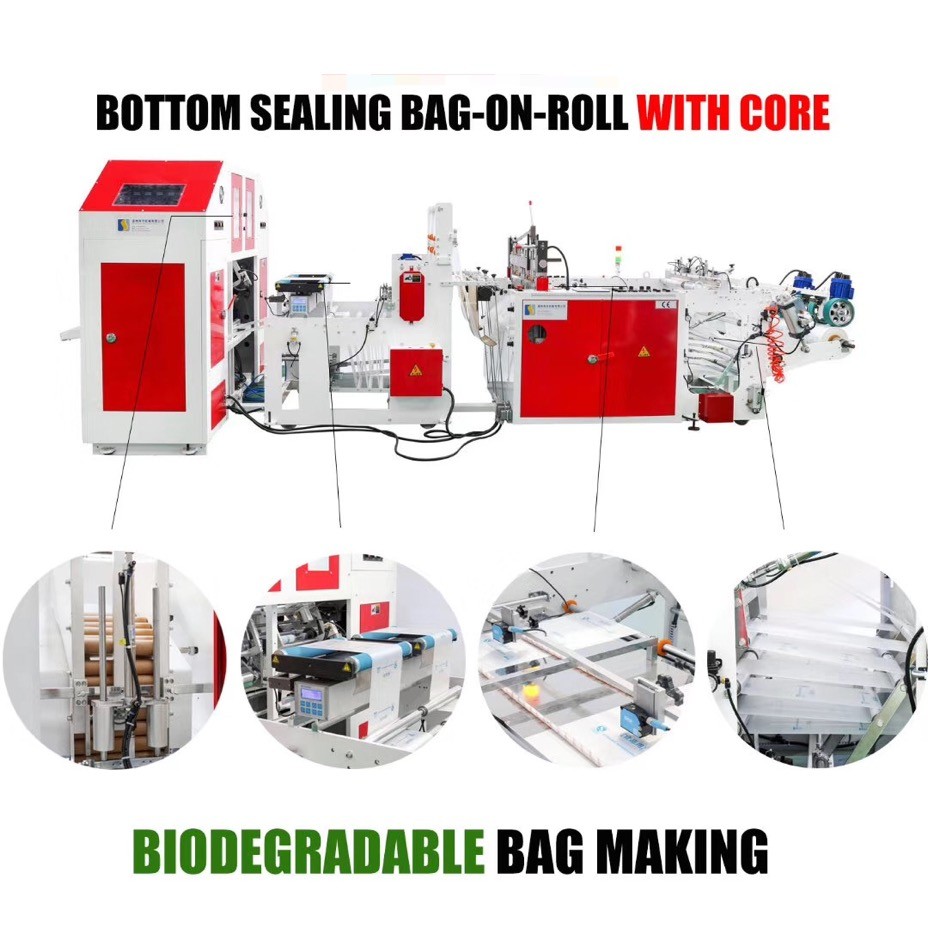

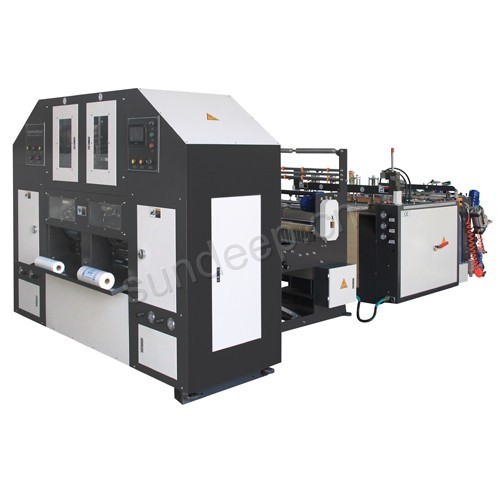

SUYX-450 X 2 TWO LINES WITH CORE MODEL:

Specification:

Machine Model	SUWX-300X2 TWO LINES CORLESS	SUYX-450 X 2 TWO LINES WITH CORE
Width of bag roll	100-150mm	200-400mm
Length of bags	200-900mm	200-800mm
Max. Diameter of rewind roll	Φ160mm	Φ160mm
Max. Diameter of unwind roll	Φ900mm	Φ900mm
Film thickness	6-25 micron per layer	8-35 micron per layer
Paper core diameter	corless	Φ25-60 with min.thickness of 2.5mm
Bag making speed Max.	80-110pcs/min x2 lines	300m/min x2 lines
Air compressor	5HP	5.5HP
Main power	13kw	14kw
Machine weight	3000kg	3200kg
Machine Diameter (LxWxH)	6500x2400x1500mm	6500x2400x2000mm
Power supply	380v/3phase/50hz
